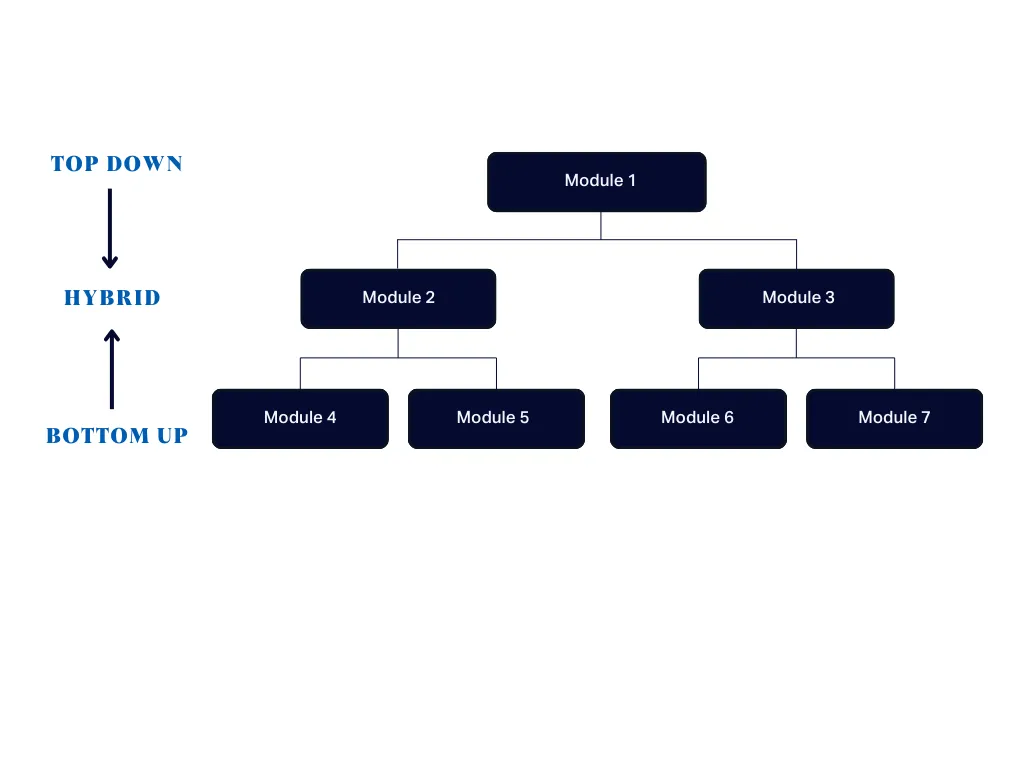

The Ultimate Guide to Sandwich Integration Testing As software systems become more complex, integration testing becomes even more important for their reliability and performance. Testlio December 13th, 2024 However, poor integration testing often delays projects, increases costs, and lowers product quality, requiring better solutions. Traditional methods like top-down or bottom-up testing often miss key interactions in multi-layered applications. These gaps lead to issues that only appear in production. Sandwich integration testing solves this problem by combining top-down and bottom-up approaches. This hybrid method validates both individual layers and their interactions, providing greater coverage and early detection. This article explores sandwich integration testing, its principles, benefits, challenges, and practical applications. What is Sandwich Integration Testing? Sandwich integration testing, also known as hybrid integration testing, is a method that combines both top-down and bottom-up integration testing approaches. It involves testing an application in layers, usually starting with the middle layer, which is tested simultaneously upwards (towards the user interface) and downwards (towards the database and other lower-level modules). Sandwich integration testing splits an application into different layers and tests them separately and integrally to ensure each layer functions correctly and meets software specifications. Here are the core features: Granularity: Tests are specific to each component or feature of an application, ensuring that each part is tested independently before integration. Three-Layer Testing Pattern: Tests both upwards and downwards from a middle layer (target layer). Incremental Testing: Starts with the target module and progresses to other components in a forward and reverse pattern. Modularization: Separates concerns into modules that can be tested independently, making the test suite more manageable and scalable. Support for Automation: Can be automated using tools like Selenium, Testsigma, and Playwright, which helps in running tests efficiently and repeatedly. Sandwich integration testing is ideal for complex systems with multi-layered architectures, as it allows for independent and combined testing of layers. It supports early bug detection by incrementally testing layers and their interaction. It also enables parallel development by combining unit and integration testing. How to Conduct a Sandwich Integration Test To perform a thorough sandwich integration test, follow these steps: Prepare the Test Plan The first step is to identify the components and layers of the application that need to be tested. Once you have a clear understanding, define the scope, objectives, and criteria for the integration tests. Next, allocate the necessary resources and set up the testing environment to facilitate smooth execution. Develop Test Scenarios and Cases The next step is to create comprehensive test scenarios that cover both top-down and bottom-up integration paths. Before moving forward, develop detailed test cases for each scenario, ensuring they address the interactions between different layers. Set Up Stubs and Drivers By using stubs, you can test lower-level modules in isolation without having to simulate higher-level modules. Similarly, use drivers to simulate lower-level modules that are not yet integrated, enabling the testing of higher-level modules independently. Execute Top-Down Testing Start with the top layer, such as the user interface, and move down to the middle layer. During this phase, use stubs to replace lower-level modules, ensuring that the top layers can be tested without waiting for the lower layers to be fully developed. Execute Bottom-Up Testing Start by testing from the bottom layer, such as the database or lower-level services, and move upwards to the middle layer. Use drivers to replace higher-level modules during this phase, allowing the lower layers to be tested independently of the higher layers. Test the Middle Layer The focus should be on the middle layer, which is the target layer, and test its interactions with both the top and bottom layers. It is critical for overall system stability that the middle layer functions correctly when integrated with both higher and lower layers. Track and Report Defects During testing, record any defects or issues encountered. After identifying defects, report them to the development team promptly for resolution. Retest and Validate Fixes Once defects are fixed, retest the affected components and their integrations to ensure the issues have been resolved. Validate that the fixes have not introduced new problems, maintaining the integrity of the system. Finally, conduct a final round of testing to ensure all layers work together properly. Benefits of Sandwich Integration Testing Sandwich integration testing offers several advantages, which makes it a valuable approach for complex software projects. Here are some key benefits: Early Bug Detection Using this method, you can detect defects early in the development process by testing both top-down and bottom-up simultaneously. This early detection can save significant time and resources by addressing issues before they escalate. Comprehensive Test Coverage Sandwich testing ensures thorough coverage by combining unit and integration testing. This approach tests individual components and their interactions, leading to a more reliable and robust application. Parallel Development and Testing This method supports parallel development and testing, allowing different teams to work on various layers of the application simultaneously. This parallelism can accelerate the development process and improve efficiency. Reduced Complexity Sandwich testing reduces the complexity of the test suite by breaking the application down into manageable layers. This modular approach makes it easier to isolate and fix defects. Scalability and Reusability The modular nature of sandwich testing makes it scalable and reusable. As the application grows, new tests can be added without disrupting existing ones, ensuring continuous integration and testing. Improved Communication Between Teams This method promotes better communication and collaboration between development and testing teams. By focusing on specific layers, teams can coordinate more effectively and ensure that all parts of the application work together efficiently. Support for Automation Sandwich testing can be automated using various tools, such as Selenium, Testsigma, and Playwright. Automation improves the efficiency and consistency of the testing process, allowing for frequent and reliable test executions. Challenges of Sandwich Integration Testing While sandwich integration testing offers many benefits, it also comes with its own set of challenges. Here are some of the key difficulties you might encounter: Test Management Complexity and Resources Testing top-down and bottom-up approaches simultaneously can be highly complex and resource-intensive. This process requires careful planning, significant time, and skilled team to set up stubs and drivers for simulating higher and lower-level modules effectively. Incomplete Testing from Stubs and Drivers The reliance on stubs and drivers can sometimes result in incomplete testing. If these placeholders do not accurately simulate the actual modules, it can lead to missed defects or false positives. Therefore, it can compromise the overall quality of the results. Integration and Maintenance Challenges An application’s different layers can be difficult to integrate, particularly when the interfaces and data formats differ. It is also very difficult to maintain the test environment and keep stubs and drivers up-to-date with the latest changes in the application, adding to the maintenance overhead. Scalability and Overlapping Tests As the application grows, it becomes increasingly difficult to manage and execute sandwich tests. Test suites have to remain scalable and efficient over time. Moreover, there is a risk of overlapping tests, where the same functionality is tested multiple times in different layers. This leads to inefficiencies and increased testing time. Coordination and Debugging Efforts Testing across layers and dealing with integration issues can lead to more debugging and troubleshooting. This overall coordination can be time-consuming and requires careful management to ensure that all components are tested thoroughly. Best Practices for Effective Sandwich Integration Testing To maximize the effectiveness of sandwich integration testing, consider the following best practices: Plan Thoroughly The testing process should begin with a detailed test plan that defines the scope, objectives, and criteria for the integration tests. This plan should clearly outline strategies for both top-down and bottom-up testing to ensure comprehensive coverage. Design Comprehensive Test Cases The next step is to design test cases that address all possible interactions between application layers. Ensure these test cases are detailed and include both functional and non-functional requirements. This helps in thoroughly validating the system’s behavior. Use Automation Tools Automation tools like Selenium, Testsigma, and Playwright can simplify the testing process. These tools help execute repetitive tests and provide consistent results across test runs. Implement Continuous Integration (CI) The integration of continuous integration (CI) practices helps detect and resolve integration issues early. CI tools can automatically execute integration tests whenever new code is committed, maintaining system stability and reducing delays. Utilize Stubs and Drivers Effectively Stubs should be used to simulate higher-level modules, while drivers can replace lower-level modules. This approach allows individual layers to be isolated and tested without waiting for the full application to be developed. Monitor and Analyze Test Results It is important to monitor and analyze test results regularly. Analyze the data to identify patterns and trends. This proactive approach ensures that testing remains effective and areas of improvement are addressed promptly. Maintain Test Environments The test environments should be kept up-to-date and aligned with the production environment. This alignment reduces the risk of inconsistencies and prevents unexpected issues during testing. Examples of Sandwich Integration Testing Here are a few scenarios that illustrate how sandwich integration testing can be applied: E-commerce Application Scenario: Testing an e-commerce platform with multiple layers, including the user interface (UI), business logic, and database. Top-Down Testing: Start by testing the UI components such as the shopping cart and checkout process using stubs to simulate the backend services. Bottom-Up Testing: Test the database interactions and business logic using drivers to simulate the UI components. Middle Layer Testing: Focus on the business logic layer, ensuring it correctly processes orders, calculates totals, and interacts with both the UI and database layers. Banking System Scenario: A banking application with layers for user authentication, transaction processing, and data storage. Top-Down Testing: Begin with the user authentication module, using stubs to simulate the transaction processing and data storage layers. Bottom-Up Testing: Test the data storage layer, ensuring it correctly handles account data and transaction records, using drivers to simulate the upper layers. Middle Layer Testing: Validate the transaction processing layer, ensuring it correctly handles transactions, updates account balances, and interacts with both the authentication and data storage layers. Healthcare Management System Scenario: A healthcare management system with layers for patient records, appointment scheduling, and billing. Top-Down Testing: Start by testing the appointment scheduling interface, using stubs to simulate the patient records and billing systems. Bottom-Up Testing: Test the billing system, ensuring it correctly processes payments and generates invoices, using drivers to simulate the upper layers. Middle Layer Testing: Focus on the patient records layer, ensuring it correctly stores and retrieves patient information and interacts with both the scheduling and billing systems. Final Thoughts Sandwich integration testing ensures software reliability, especially in complex, multi-layered systems. It combines top-down and bottom-up testing to provide thorough coverage and early defect detection. This approach validates individual layers and their interactions, reducing risks and improving software quality. It may be challenging to manage stubs or maintain environments, but adopting best practices and using automation tools can reduce the time and effort spent on these tasks. Take your testing efforts to the next level with Testlio. Our expert QA services and advanced tools can help you implement effective integration testing strategies. Learn more about Testlio’s QA solutions today!
