Component Testing: The Ultimate Guide With Examples

Testlio

December 23rd, 2024

And that’s where component testing plays a crucial role, as it ensures each part of the system behaves as expected, independent of other effects.

In today’s rapidly evolving tech landscape, component testing is a crucial tool for ensuring quality and accelerating development. By catching bugs early and supporting modular designs, component testing enhances innovation, scalability, and efficiency in software development.

This guide explains what component testing is, covering its characteristics, process, and best practices. With examples and insights into its integration with Agile and DevOps, it provides clear steps to incorporate component testing effectively into your workflow.

What is Component Testing?

Component testing is a type of software testing that evaluates the individual components of a software application. These components, often the building blocks of a system, can range from functions and modules to objects and methods.

The primary focus is to test these components independently, ensuring they function according to their design. This independence allows testers to pinpoint defects at the source and validate that each part performs as intended.

A closer look at components in software development

In software development, a component refers to a modular unit of the application. These are self-contained pieces of the larger software system. Think of these components as the fundamental building blocks that make up the software system.

Examples include:

• User interface (UI) components: Buttons, forms, or navigation bars.
• Business logic components: Payment processing modules or user authentication systems.
• Service components: APIs that retrieve or update information.

By breaking down the application into manageable units, developers and testers can ensure every piece meets the highest quality standards.

Why is Component Testing Important & Why is It Essential?

Component testing is not just a routine step in the Software Development Life Cycle (SDLC); it is a critical process. It ensures that reliable, high-quality software is delivered.

It helps eliminate issues early by isolating and separately testing the components, saving time and effort and reducing costs on further developments.

Below are the key reasons as to why component testing is indispensable:

1. Early defect detection

One of the primary benefits of component testing is the ability to identify defects at the source during the early stages of development. Bugs that are caught at this stage are simpler and cheaper to fix compared to issues discovered during integration or after deployment.

For example:

• A poorly implemented login function can be corrected before it compromises the entire authentication system.
• Logical errors in a single module can be resolved without disrupting other components.

Early detection minimizes the ripple effects of defects, reducing their impact on other parts of the application.

2. Improved code quality

Rigorous component testing contributes to building a solid foundation of reliable code. Each component is validated for its functionality, logic, and edge case handling, ensuring that the building blocks of the application are robust.

This leads to:

• Fewer issues during subsequent testing phases.
• Greater confidence in the software’s overall quality.

For instance, a validated inventory management module in an e-commerce system ensures accurate stock updates, reducing the risk of transactional errors in the future.

3. Seamless integration

Component testing lays the groundwork for smoother integration testing. Developers can avoid potential conflicts during integration by ensuring that each module performs as expected.

Reliable components reduce the likelihood of integration failures caused by undetected bugs in individual units.

Example:
If a payment processing component has been thoroughly tested, developers can confidently integrate it with the cart and inventory systems, minimizing disruptions.

4. Cost efficiency

The cost of fixing a defect increases exponentially as it moves through the development lifecycle. According to a report, the cost of poor software quality was $2.41 trillion in the US in 2022.

Component testing contributes to improving software quality and reduces these costs by:

• Catching errors before they escalate.
• Avoiding expensive fixes in the later stages of development or after deployment.

5. Reduced risks during scaling

Software applications must often scale to accommodate new features, growing user bases, or increased transaction volumes. Component testing ensures the individual modules are robust and can handle scaling demands effectively.

With reliable components, developers can:

• Confidently add new functionalities without breaking existing features.
• Support larger user bases with minimal disruptions.

For example, a validated API module can handle increased requests seamlessly during scaling efforts.

Key Characteristics of Component Testing

To understand what makes component testing effective, let’s look at its defining features:

1. Isolation

Components are tested independently of external systems or dependencies. This isolation ensures that any bugs found are within the component itself.

For example, if you’re testing a login module, it should be decoupled from the database to focus solely on its input validation logic.

2. Emphasis on internal logic

Component testing focuses on verifying the internal workings of a component, including:

• Logical flows.
• Boundary conditions.
• Handling of edge cases, such as unexpected inputs or outputs.

3. Use of specialized tools

Tools like JUnit, NUnit, and Mockito are commonly used to create automated test cases. These tools help simulate scenarios and validate results efficiently.

4. Granular Testing

Unlike higher-level tests, component testing zooms in on specific modules or functions, providing a microscopic view of software quality.

5. Iterative nature

Component testing is not a one-time activity. Developers and testers revisit components during updates or feature additions, making it a continuous quality control measure.

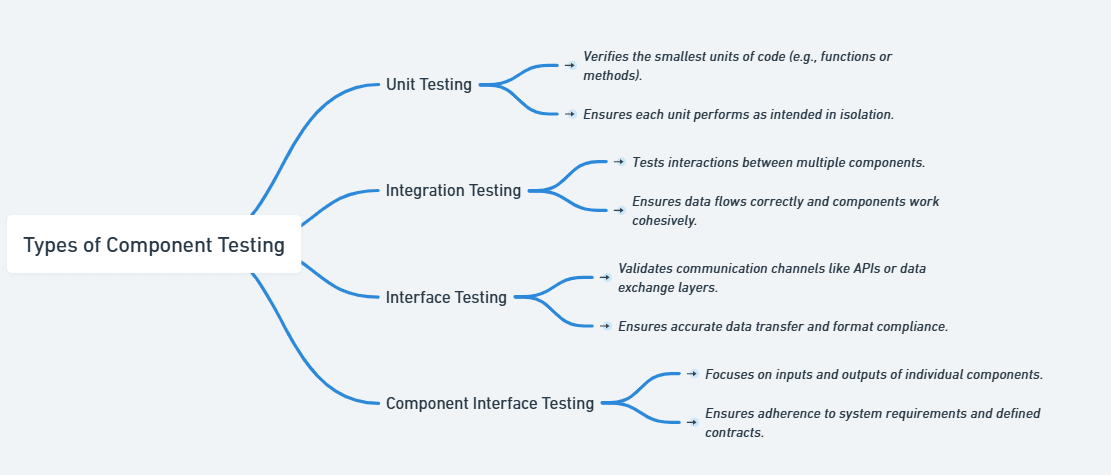

Types of Component Testing

To ensure comprehensive validation of software components, several types of testing are employed, each focusing on different aspects of functionality and interaction.

By understanding the distinct purposes and scopes of these testing types, teams can systematically ensure the quality and reliability of individual components and their interactions within the system.

Below are the key types of component testing, explained with examples.

                                                Detailed Types of Component Testing

1. Unit testing

The most basic and granular testing component is unit testing. This technique tests an individual unit of the code, such as a function, method, or class, to ensure that it delivers its intended functionality.

For the most part, unit tests are automated and are run on the first line against the defect in the development phase.

Example:

Testing a function that calculates discounts based on percentage values. Providing different inputs, such as a 20% discount on an item priced at $100, ensures the output matches the expected result ($80).

2. Integration testing

Integration testing examines how different components of the system interact with one another. This form of testing validates that data flows correctly between components and that they work cohesively as a whole.

It typically builds upon the successful completion of component tests.

Example:
Testing the interaction between a shopping cart module and an inventory API. The test ensures that the inventory count updates accurately in real-time when an item is added to the cart.

3. Interface testing

Interface testing focuses on verifying the communication between components, specifically through their interfaces, e.g., APIs and data exchange layers. It ensures that data is passed and received accurately and that the interactions meet the specified contract or format.

Example:
Testing an API that retrieves user profiles. The test verifies that a request for user data returns the expected JSON response, including fields like name, email, and user_id.

4. Component interface testing

Component interface testing is a specialized subset of interface testing. It focuses on validating the inputs and outputs of a specific component to ensure they align with the system’s requirements.

This type of testing is particularly crucial in microservices architectures, where components often rely on well-defined contracts.

Example:
Testing a payment gateway service in a microservices setup. The test ensures that inputs such as card details, payment amount, and currency are processed correctly, and the outputs include valid transaction statuses like “Success” or “Declined.”

Component Testing vs. Unit Testing

Although unit testing is a part of component testing and shares inherent similarities in isolating specific software elements for evaluation, they differ in scope and objectives.

Understanding these differences is key to effectively implementing both testing types.

While both types aim to detect bugs early, unit testing lays the foundation for robust code, while component testing ensures that these building blocks work effectively together.

When is Component Testing Performed?

Component testing typically occurs after the coding phase but before integration testing in the SDLC. It serves as an intermediary step to validate that individual components function correctly in isolation.

Key moments to perform component testing

1. Post-code development: Once a component or module is complete, it undergoes testing to verify its functionality.
2. Pre-integration testing: Ensures that individual modules are error-free before combining them into a larger system.
3. During iterative development: In Agile environments, component testing is performed continuously as new components are developed or existing ones are updated.
4. Before major releases: Critical modules may be re-tested to ensure they meet quality benchmarks for deployment.

Performing component testing at these stages helps identify and address defects early, reducing risks during integration and deployment.

Component Testing Process

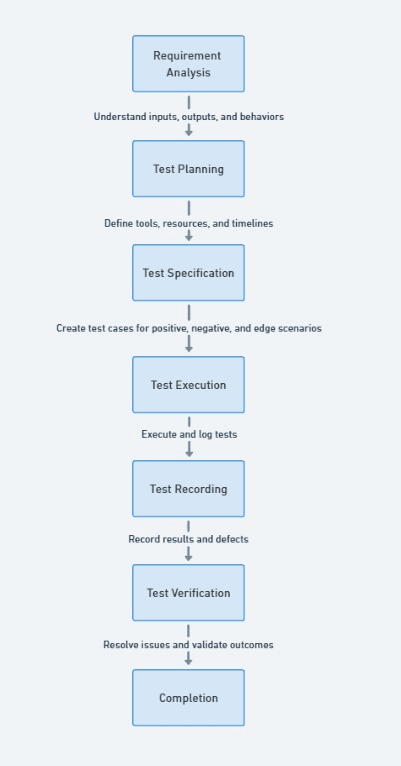

The infographic below outlines the structured Component Testing Process, showcasing its sequential steps and key activities. This framework helps organizations systematically progress through the testing lifecycle, ensuring thorough validation and smooth integration.

     Enhanced Component Testing Process Diagram

The component testing process involves several structured steps to ensure thorough coverage and accurate results.

Below is a detailed breakdown of each step:

1. Requirement analysis

• Understand the functional and non-functional requirements of the component.
• Identify inputs, outputs, and expected behaviors.
• Document edge cases, error-handling requirements, and performance benchmarks.

2. Test planning

• Define the objectives and scope of testing.
• Choose the tools, techniques, and frameworks for testing.
• Allocate resources and set timelines for execution.
• Prepare a test environment and test data that simulates the component’s real-world conditions.

3. Test specification

• Design test cases covering:
  • Positive scenarios, e.g., valid inputs.
  • Negative scenarios, e.g., invalid or unexpected inputs.
  • Edge cases, e.g., boundary conditions or extreme values.
• Ensure test cases include input data, expected outcomes, and execution steps.

4. Test execution

• Execute the designed test cases on the component.
• Automation tools like JUnit or Postman can be used for efficient and repeatable tests.
• Monitor the component’s behavior and log any issues.

5. Test recording

• Record results for each test case, noting:
  • Whether the test passed or failed.
  • Observed outputs versus expected outputs.
  • Details of any identified defects.

6. Test verification

• Verify that the component’s outputs align with the expected outcomes.
• Analyze any discrepancies to determine their root causes.
• Ensure all detected issues are resolved.

7. Completion

• Confirm that all test cases have been executed successfully.
• Validate that the component meets predefined acceptance criteria.
• Mark the testing phase as complete and prepare the component for integration testing.

Strategies for Effective Component Testing

To maximize the effectiveness of component testing, it’s crucial to adopt strategies tailored to the complexity and architecture of the application.

Two primary approaches are employed depending on the scale and scope of the components being tested.

1. Component testing in small (CTIS)

CTIS focuses on independently testing small, isolated components. This strategy works best in applications with a modular architecture, where each component has a clearly defined role and minimal dependencies.

By isolating these components, developers can identify defects at a granular level.

Example:
Testing a date formatting function in a calendar application. The function is isolated from other modules, and test cases verify its ability to correctly format dates for various locales.

2. Component testing in large (CTIL)

CTIL is designed to test more complex components that interact with other system parts. This approach often uses stubs and mocks to simulate dependencies and interactions, ensuring the component works as expected in a realistic environment.

Example:
Testing an order processing module in an e-commerce platform. Stubs simulate inventory checks, while mocks emulate payment gateway responses to validate the component’s ability to process orders seamlessly.

For large-scale systems, CTIS and CTIL are often used together. This ensures both the granular validation of small components and the functional cohesion of larger, interconnected modules.

Examples of Component Testing

Component testing ensures that individual features work correctly in isolation, building a strong foundation for integration.

Below are two examples:

Test Case 1: Login module

Objective: Verify the functionality of a login module to ensure it processes user credentials accurately.

Steps:

1. Valid credentials: Test with correct username and password combinations to ensure successful login.
2. Invalid credentials: Enter incorrect username/password pairs to verify that login attempts are rejected with proper error messages.
3. Edge cases:
   • Empty username or password fields.
   • Special characters in the username/password to check for handling of unusual inputs.
   • Very long input strings to test system limits.

Example in action:
Consider a banking application where users log in to access their accounts. Component testing of the login module verifies that the system allows only authorized access, preventing potential breaches.

Test Case 2: Shopping cart

Objective: Test the core functionality of a shopping cart module, including adding and removing items and updating the total price.

Steps:

1. Add items: Add one or multiple items to the cart and verify that the cart reflects the correct items and quantities.
2. Remove items: Remove items from the cart and confirm that they are deleted accurately without affecting the remaining items.
3. Price calculation: Ensure the total price updates dynamically with each addition or removal, including discounts and taxes where applicable.

Example in action:
In an e-commerce platform, a validated shopping cart module ensures that customers can manage their purchases without errors, enhancing the user experience and boosting trust in the system.

Benefits of Component Testing

Component testing delivers numerous advantages that enhance the overall software development process:

1. Early bug detection
   Identifies issues within individual components, reducing the risk of cascading defects during integration.
2. Improved code reliability
   Validates the functionality and logic of components, ensuring they perform as intended in all scenarios.
3. Cost efficiency
   Resolving defects at the component level is more cost-effective than addressing them after integration or deployment.
4. Better integration
   Thoroughly tested components integrate seamlessly, reducing conflicts and enhancing system stability.
5. Increased test coverage
   Focused testing ensures all functional aspects of a component are examined, leaving no gaps.
6. Facilitates agile and DevOps practices
   Supports rapid iterations and continuous testing, aligning well with modern development methodologies.

Challenges in Component Testing

To effectively address the complexities of component testing, it is important to understand the various challenges involved and their influence on the testing process.

1. Dependency isolation: Many elements of a system depend on other external systems or services, so testing them in isolation is hard.

   So these external dependencies are simulated for better handling using stubs or mocks. This usually makes it harder to actually create and manage those.

2. Thorough test cases: To test completely, one needs to develop test cases that cover all possible inputs, outputs, and edge cases.

   This is, however, highly time-consuming and needs a huge amount of planning and expertise in understanding the behavior of the component.

3. Resource limitations: Effective component testing demands skilled personnel who understand the system’s intricacies and access to appropriate tools and environments.

   Limited availability of such resources can hinder the testing process and compromise the quality of the outcomes.

4. Evolving requirements: Software requirements frequently change during the development lifecycle, so existing component tests must be updated to reflect these changes.

   This ongoing maintenance can be resource-intensive and requires continuous attention to ensure tests remain relevant and accurate.

Best Practices for Component Testing

To enhance the effectiveness of component testing and address common challenges, adopting best practices is essential for ensuring thorough and efficient testing processes.

1. Automate testing: Leveraging tools such as JUnit or Mockito can significantly enhance testing efficiency by automating repetitive tasks, allowing teams to focus on analyzing results and improving coverage.
2. Write clear test cases: Creating well-documented and clearly defined test cases helps improve accuracy by making it easier to understand what is being tested and ensuring consistent execution.
3. Test edge cases: It’s important to account for boundary conditions and unusual inputs during testing, as these often reveal unexpected issues that may not surface during regular scenarios.
4. Use mocking: Simulating dependencies using mocking tools allows testers to isolate the component under test, focusing solely on its behavior without interference from external systems.
5. Integrate into CI/CD: Embedding component tests into the continuous integration/continuous delivery (CI/CD) pipeline ensures continuous feedback, enabling quick identification and resolution of issues as the code evolves.

Tools and Frameworks for Component Testing

The right tools and frameworks streamline component testing, making it more efficient and reliable. Below are some of the most widely used options:

1. JUnit

• Best for: Java applications.
• Features: Supports assertions, parameterized tests, and mocking.

2. NUnit

• Best for: NET-based applications.
• Features: Allows parallel test execution and test categorization.

3. Mockito

• Best for: Creating mock objects in Java.
• Features: Simplifies testing by simulating dependencies.

4. Selenium

• Best for: Automated UI component testing.
• Features: Cross-browser testing and scriptable automation.

5. Postman

• Best for: Testing API components.
• Features: Supports RESTful API validation and automated workflows.

6. Reflect

• Best for: Rapid end-to-end testing with an intuitive no-code approach.
• Features: Auto-healing web tests, cross-browser support, and CI/CD integrations for quick, scalable automated testing.

By combining these tools with a structured approach to testing, teams can achieve higher quality, efficiency, and confidence in their software components.

Component Testing in Agile and DevOps

Component testing is vital in Agile and DevOps, where continuous testing ensures software quality.

Component Testing in Agile Development

• Supports iterative and incremental cycles by isolating and testing individual system parts.
• Provides rapid feedback, enabling early defect detection and continuous improvement with each sprint.
• Reduces debugging complexity by pinpointing issues in specific components, streamlining the development process.
• Enhances collaboration among developers, testers, and stakeholders with clear, actionable insights into component functionality.

Component Testing in DevOps Workflows

• It seamlessly integrates automated component tests into CI/CD pipelines for continuous validation.
• It ensures that each code change is properly tested before the next development or deployment step.
• This helps teams maintain high-quality standards while keeping up with the fast-paced nature of DevOps.
• Automates, thus promoting software reliability and efficiency throughout the entire development lifecycle.

Component Testing in a Hybrid Agile-DevOps Approach

• Combines iterative feedback from Agile with the automated, continuous validation of DevOps.
• Ensures defects are detected early while maintaining efficiency and reliability across CI/CD pipelines.
• Simplifies debugging and fosters collaboration by delivering modular, testable components in smaller updates.
• Balances rapid development with rigorous testing to support quality, scalability, and streamlined workflows.

How Testlio Can Help You with Component Testing

Component testing is essential for software quality, and Testlio makes it seamless by connecting you with QA freelancers who can isolate and validate individual system parts. The QA experts ensure each component is working as expected, improving reliability while saving time and reducing costs by identifying issues early.

Here’s how Testlio supports your component testing efforts:

• Expert testing network: Access a global network of experienced testers to validate your components across diverse scenarios.
• Flexible integration: Seamlessly integrate component tests into your Agile or DevOps pipelines easily.
• Advanced reporting:Advanced Reporting Get actionable insights with granular reporting that helps you understand what to fix and where quickly.
• Scalable solutions: Adapt your testing strategies to meet the unique demands of your project, regardless of its size or complexity.

Contact us  to ship higher quality software faster, and deliver it with greater confidence in your code.
